CNC Mandrel Rotary Draw Tube Bending Machines 6 inches Capacity
- Model
- SB-159CNC-H
Item specifics
- Bending capability OD×WT
- Φ159×10mm
- Bending speed
- Max. 30°/sec
- Feeding speed
- 600 mm/sec
- Feeding accuracy
- ±0.1 mm
- Rotating speed
- 180°/sec
- Rotating accuracy
- ±0.1°
- Voltage
- 220V, 380V, 415V, 440V, 480V, 600V 3P
- Mandrel bending
- Ball Mandrel
- Bending
- Cold draw bend
- Certificate
- CE, ETL
Review
Description
CNC Mandrel Rotary Draw Tube Bending Machines 6 inches Capacity
Bossray CNC Mandrel Rotary Draw Tube Bending Machines handle everyday bending tasks as well as the most demanding, high-precision jobs. These CNC Mandrel Tube Bending Machines are perfectly suited for production in any industrial setting including Automotive, Motorcycle & ATV, Fitness GYM, Medical and Furniture, etc. Our newest CNC Rotary Draw Benders are available in all-electric, hybrid electric, or hydraulic drive models.
Bossray High Performance CNC Mandrel Tube Bending Machines provide energy-efficient production with the most advanced technology and features. Additionally, our CNC Benders function alone or seamlessly integrate into any production setup. Bossray can combine any CNC Benders with our automated loaders/unloaders robot arms or CNC laser tube to create a custom work cell solution. These custom work cells increase production and free up your staff for more important tasks. Request a quote for any of our CNC Mandrel Rotary Draw Tube Bending Machines online.

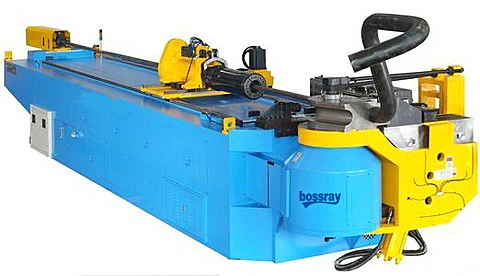

![SB-50CNC-4A/5A Mandrel Tube Bender](https://icdn.tradew.com/file/202303/1575682/jpg/7958339.jpg?x-oss-process=image/quality,Q_90)
159CNC Rotary Draw Tube Bending Machines Parameter
Model |
SB-159CNC-H |
|||
Bending capability OD×WT (carbon steel):
|
Φ159×10 mm |
|||
Bending radius: |
480mm |
|||
Bending angle |
0~180° |
|||
Max bending length with mandrel: | 4000mm | |||
Bending speed: | Max. 30°/sec | |||
Bending accuracy: | ±0.1° | |||
Feeding speed: | 600 mm/sec | |||
Feeding accuracy: | ±0.1 mm | |||
Rotating speed: | 180°/sec | |||
Rotating accuracy: | ±0.1° | |||
Tools stack: | 1 or multiple | |||
Bending: | Electric Servomotor or Hydraulic | |||
Feeding/Booster: | Electric Servomotor | |||
Rotating: | Electric Servomotor | |||
Work head shift (horizontal): | Electric Servomotor option | |||
Work head shift (vertical): | Hydraulic /Electric Servomotor option | |||
System hydraulic pressure: | 16 MPa | |||
Packing size refer: | 6500×1500×1700mm | |||
Weight refer: | 9000kgs |
Video
CNC Mandrel Rotary Draw Tube Bending Machines Video
CNC Rotary Draw Tube bending machines adopts industrial-grade touch screen control system and professional software of benders, driving by servo-motor and hydraulic pressure. Providing the automatic functions of feeding, rotating, die exchanging, drawings reading, editing, filemodifying, rebound data adjusting, automatic faults diagnosing and 3D display.
CNC Mandrel Rotary Draw Tube Bending Machines Features and Advantages
- 1Bend-arm (C-axis) by Hydraulic / Servomotor
- 2Clamp die by hydraulic or servomotor; pressure die by hydraulic or servomotor.
- 3Carriage (Y-axis) by servomotor.
- 4With rear booster is driven by a servo motor.
- 5Collets (B-axis): rotation by servo motor, grip by hydraulic or servomotor.
- 6 With the roll bending function (PUSH BENDING), can make a big radius by rolling.
- 7Tooling shift: motion up-down by hydraulic or servomotor with brake; left-right by servomotor.
- 8PDA (pressure die assist): by hydraulic or servomotor.
- 9Automatic moving parts lubrication systems.
- 10Standing pedestal, serves emergency stop, double-hand startup, and remote control.
- 11Industrial PC (windows system) assorted with touch screen display, 3D preview, remote control, 3D bending simulation, and collision prevention.

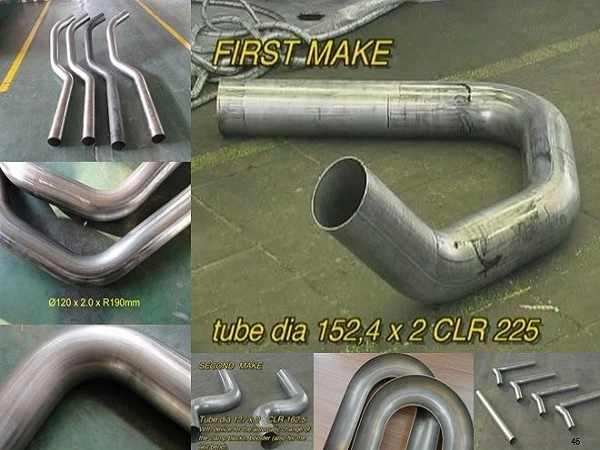

![Bossray 159mm tube bending machines](https://icdn.tradew.com/file/202303/1575682/jpg/8096550.jpg?x-oss-process=image/quality,Q_90)
![Bossray CNC automatic tube bending 159mm](https://icdn.tradew.com/file/202303/1575682/jpg/8096552.jpg?x-oss-process=image/quality,Q_90)

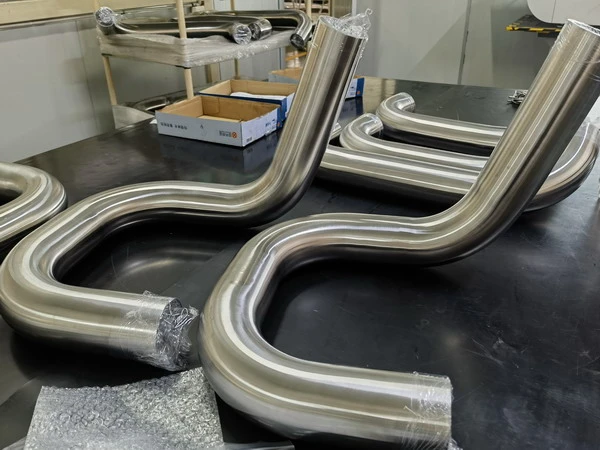

![Bossray stainless steel mandrel bending](https://icdn.tradew.com/file/202303/1575682/jpg/8092655.jpg?x-oss-process=image/quality,Q_90)
![Bossray tube bender for exhausts tubes](https://icdn.tradew.com/file/202303/1575682/jpg/8092656.jpg?x-oss-process=image/quality,Q_90)
OPTION
- 1Multi radius
- 2Left and right direction bending
- 3Punching device
- 4Cutting device
- 5Safety fence
- 6Safety mat or Light curtain protection
- 7Bend 1.0*D radius or more tight radius
- 8Fan / Water / Oil cooling system
- 9Robot loading and unloading systems
- 10Safe blanket / Infrared alarm device
- 11SIEMENS 3D convert
- 12Electric power supply transformer
- 13Quick tooling change
